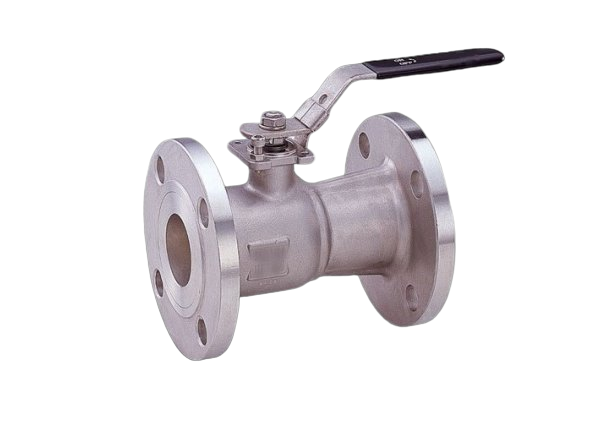

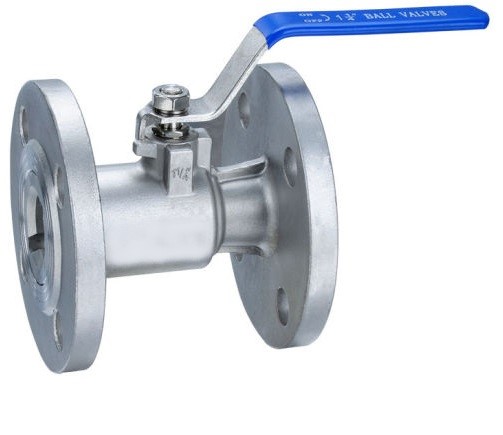

Model K2: One/Two Piece, Fire Safe-Antistatic design, Full bore Flange end (150#,300#)

One Piece body from DN 15 to DN 40 and Two-piece design from DN 50 to DN 200 valve size. Ideally suitable for use in oil and gas production, refining and chemical applications. Body material and wetted trim components confirms to NACE standard MR 0175. Fire safe and Anti-static design where Hazardous areas with handling of flammable fuels, gases or chemicals are in use.

Technical Data :

Size Range: DN 15 – DN 40 (One piece), DN 50 – DN 200 (Two piece)
Pressure rating : ASME Class 150 to 300
Temperature range: Up to 260 deg. C
Seat : PTFE / Carbon Reinforced PTFE
End Connections : Flanged ASME B16.5
With & Without ISO PAD

Valve Dimensions:

VALVE SIZE		ØB		C	D		E		F	K	STEM CONNECTION		TOP FLANGE
DN	ØA Bore	150#	300#	C to T	150#	300#	150#	300#			H X G	Keyway	No. of Holes	Hole Dia	PCD
15	14	89	95	26	108	140	56	56	137	101	9.5 X 6.3	N/A	4	7	60
20	19	98	117	32	117	152	57	57	155	107	14.3 X 9.5	N/A	4	7	70
25	25	108	124	37	127	165	60	60	155	110	14.3 X 9.5	N/A	4	7	70
40	38	127	156	47	165	190	87	87	277	110	19 X 12.7	N/A	4	M8	70
50	50	152	165	66	178	216	75	93	227	121	19 X 12.7	N/A	4	M8	70
65	63	178	190	85	190	241	89	107	427	160	22 X 15.9	N/A	4	M10	102
80	76	190	210	97	203	283	95	116	427	170	22 X 15.9	N/A	4	M10	102
100	102	230	254	129	229	305	99	135	625	220	Ø32	10 X 10	4	M12	125
150	151	317	332	159	394	403	181	186	966	255	Ø32	10 X 10	4	M12	125
200	201	408	381	199	457	502	229	N/A	N/A	N/A	Ø35	10 X 8	4	M12	125

All dimensions are in mm.

Notes

F = Handle dimension when the handle is in the extended position.
H = Diameter of the stem connection.
G = Dimension across the stem flats.
Dimensions are nominal to ± 1mm.

Valve Dimensions:

Class	Body Material	Insert Material	Seat	Ball Material	Stem Material	Body Seal	Wrench
150	WCB	WCB	PTFE	CF8	304 S/S	PTFE	MS
150	WCB	WCB	PTFE	CF8M	316 S/S	PTFE	MS
150	CF8M	CF8M	PTFE	CF8M	316 S/S	PTFE	SS
300	WCB	WCB	Carbon R'PTFE	CF8M	316 S/S	PTFE	MS
300	CF8M	CF8M	Carbon R'PTFE	CF8M	316 S/S	PTFE	SS

General Notes

Tailored customization and automation to meet specific customer requirements.
Standard certificate of compliance issued to EN10204 Type 3.1.
Maintaining safety stock levels as per customer specifications.
Every valve undergoes comprehensive factory testing and inspection in accordance with industry standards.
Availability of various trims to suit unique customer needs.
Assisting customers with sourcing additional product requirements.
Consultation services with the factory for torque and other technical details.
